Water supply > Gate Valves

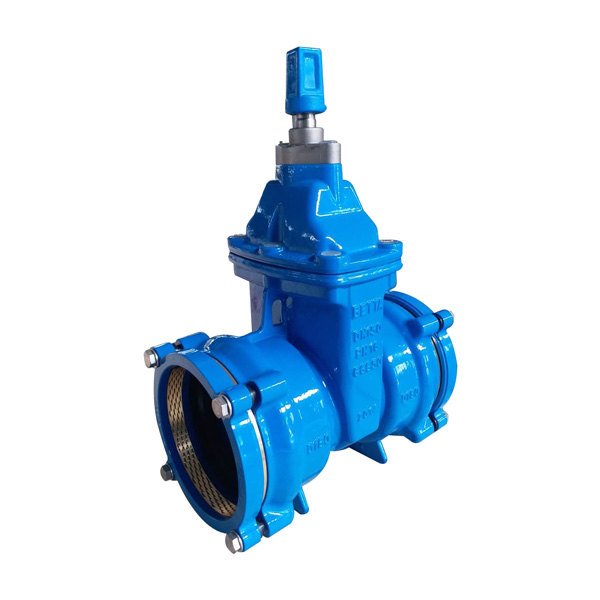

BETTA RESILIENT SEATED GATE VALVE with PE Mechanical Coupling Ends, PN16, CC or ACC
With tensile couplings, for Polyethylene Pipes PE100, DN90~DN315
Gate valve with tensile couplings for UPVC and PE pipes. For drinking water and neutral liquids to max. 40℃
ASZ72X1-16Q
Connection
Mechanical Coupling
Material
Ductile Iron
DN
DN90~315
PN
PN16
Closing Direction
Clockwise to Close
   
Anti-Clockwise to Close

Test/Approvals:

Hydraulic test according to AS2638.2-2011
Seat: 1.1PN, Body: 1.5PN
Closing torque test to AS2638.2 Table5.1
AS2638.2 Registration No. 25731
WaterMark Registration No. 25731

Standards:

Designed and certified according to AS2638.2-2011
With tensile couplings for Polyethylene Pipes PE100

Features:

  • Ductile iron grade of BS500-7 body and bonnet for high strength and impact resistance
  • Sockets with combined compression type drinking water approved EPDM gasket and brass tensile ring for PE and uPVC pipes
  • Wedge fully vulcanized with drinking water approved EPDM rubber and equipped with slide shoes to provide smooth operation during opening and closing
  • Wedge and body guide rails ensure stable operation
  • Stainless steel 431 stem and rolled threads for high strength
  • Removable gland flange for O-ring stem seals replaceable under allowable working pressure
  • Straight through full bore
  • Low operating torque
  • Fusion bonded epoxy coating to AS4158&4020, WRAS, AS, DIN approved
  • Body/bonnet bolts sealed with hot melt
  • All fasteners of S.S.316 for corrosion resistance

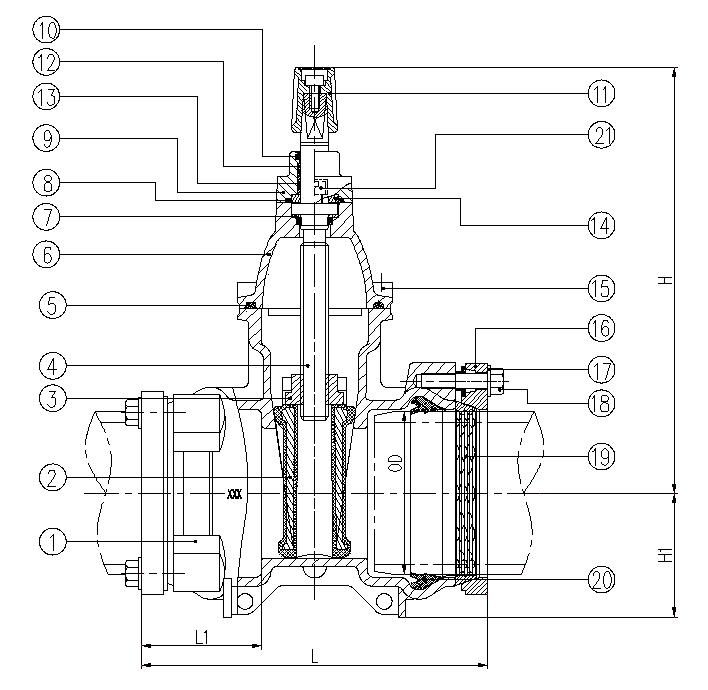

Components tree:

1 Body Ductile Iron BS500-7
2 Wedge Ductile Iron EPDM Encaps
3 Stem nut Brass C48600
4 Stem Stainless Steel 1Cr17Ni2(431)
5 Bonnet gasket Rubber EPDM
6 Bonnet Ductile Iron BS500-7
7 Washer Plastic POM
8 O-ring Rubber NBR
9 Gland Stainless Steel 316(CF8M)
10 Dust seal Rubber EPDM
11 Stem cap Ductile Iron BS500-7
12 Seal retainer Plastic POM
13 Stem seal Rubber NBR
14 Wahser Brass C48600
15 Bonnet bolt Stainless Steel 316(CF8M)
16 Thrusting ring Ductile Iron BS500-7
17 Bolt washer Stainless Steel 316
18 Bolt Stainless Steel 316
19 Grip ring Brass C37710
20 Seal ring Rubber EPDM

Reference nos. and dimensions:

BETTA ref. no. DN
mm 		Outside Diameter of PE Pipe
mm 		H
mm 		H1
mm 		L
mm 		L1
mm 		Theoretical
Weight/Kg
90ASZ72X1-16Q 80 90 310 72 252±2 88±1.5 12.5
125ASZ72X1-16Q 100 125 330 95 260±2 88±1.5 19
180ASZ72X1-16Q 150 180 420 120 355±2 118±1.5 34
250ASZ72X1-16Q 250 250 670 160 410±2 148±1.5 75
280ASZ72X1-16Q 250 280 670 180 422±2 152±1.5 82
315ASZ72X1-16Q 300 315 740 210 495±2 175±1.5 126
