BETTA SPRING HYDRANT SWAB TYPE, PN16
To AS 3952, Blue yoke, Swab type, DN80~DN100
BETTA spring hydrant swab type for fire protection services, water and neutral liquid applications
SP42X1-16Q-Swab
Connection
Flange
Material
Ductile Iron
DN
DN80~100
PN
PN16

Test/Approvals:

Hydraulic test according to AS 3952
AS 3952 Registration No. 22026

Standards:

Designed and certified according to AS 3952
Comply with AS 4020
Coating to AS 4158
Flange and drilling to AS 4087 Fig.B5 PN16

Features:

  • Ductile iron grade of BS500-7 body and yoke for high strength and impact resistance
  • Fusion bonded epoxy coating to AS4158 approved and AS 4020 compliance
  • For fire protection services, water and neutral liquid applications
  • All fasteners of S.S.316 for corrosion resistance
  • Option of yoke in Lilac color for recycled water applications
  • S.S.316 insert, Swab type

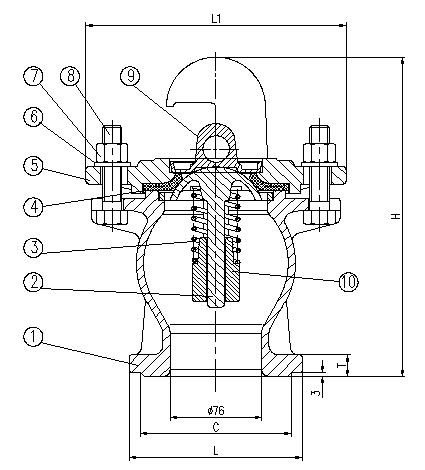

Components tree:

1 Body Ductile Iron BS500-7
2 Dome Brass C48600
3 Spring Stainless Steel 304
4 Seal gasket Rubber EPDM
5 Yoke Ductile Iron BS500-7
6 Bolt washer Stainless Steel 316
7 Bolt nut Stainless Steel 316
8 Bolt Stainless Steel 316
9 Dustproof cover Plastic PVC
10 Removable Support Stainless Steel/AS4158 Coated 304

Reference nos. and dimensions:

BETTA ref. no. DN
mm
H
mm
L
mm
C
mm
T
mm
L1
mm
Theoretical
Weight/Kg
80SP42X1-16Q-SWAB 80 264 143 122 18 216 8.5
100SP42X1-16Q-SWAB 100 264 166 156 20 216 9.5
