Water supply > Hydrants
BETTA SPRING HYDRANT, PN35
To AS3952, Flange to AS4087 Fig.B6, DN80~DN100
BETTA spring hydrant PN35 for fire protection services, water and neutral liquid applications
SP42X1-35Q
Connection
Flange
Material
Ductile Iron
DN
DN80~100
PN
PN35

Test/Approvals:

Hydraulic test according to AS 3952

Standards:

Designed and certified according to AS 3952
Comply with AS 4020
Coating to AS 4158
Flange and drilling to AS 4087 Fig.B6 Class 35

Features:

  • Ductile iron grade of BS500-7 body and yoke for high strength and impact resistance
  • Fusion bonded epoxy coating to AS4158 approved and AS 4020 compliance
  • For fire protection services, water and neutral liquid applications
  • All fasteners of S.S.316 for corrosion resistance
  • Option of yoke in Lilac color for recycled water applications
  • Hydrant PN35 rated

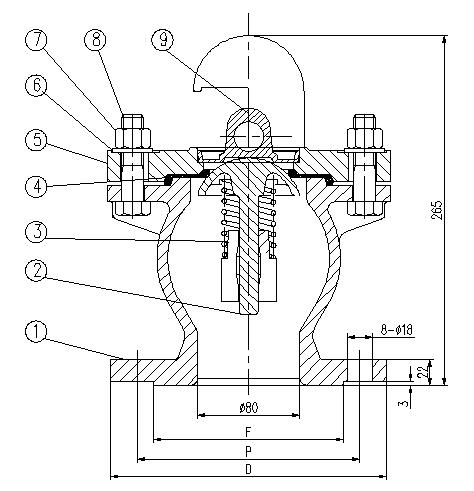

Components tree:

1 Body Ductile Iron BS500-7
2 Dome Brass C48600
3 Spring Stainless Steel 304
4 Seal gasket Rubber EPDM
5 Yoke Ductile Iron BS500-7
6 Bolt washer Stainless Steel 316
7 Bolt nut Stainless Steel 316
8 Bolt Stainless Steel 316
9 Dustproof cover Plastic PVC

Reference nos. and dimensions:

BETTA ref. no. DN
mm 		D
mm 		P
mm 		F
mm 		Theoretical
Weight/Kg
80SP42X1-35Q 80 205 165 141 14
100SP42X1-35Q 100 230 191 167 15.5
