Water supply > Hydrants

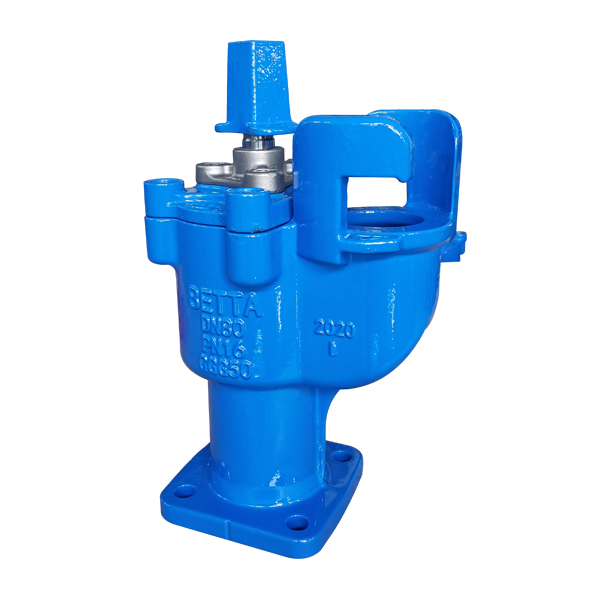

BETTA FIRE HYDRANT,PN16
SA Hydrant, Screw-down type, DN80
BETTA underground hydrant isolation valve for fire protection services, water and neutral liquid applications
BFH41X1-16Q-SA
Connection
Flange
Material
Ductile Iron
DN
DN80
PN
PN16
Closing Direction
Clockwise Close

Test/Approvals:

Hydraulic test according to AS/NZS 4522
AS/NZS 4522 Registration No.30048

Standards:

Designed and certified according toAS/NZS 4522
Comply with AS 4020
Coating to AS 4158

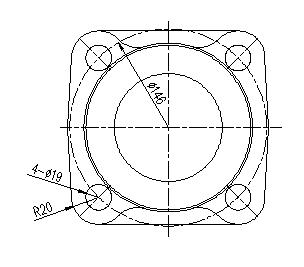

Flange and drilling to AS 4087 Fig.B5 PN16

Features:

  • Ductile iron grade of BS500-7 bodyfor high strength and impact resistance
  • Fusion bonded epoxy coating to AS4158 approved and AS 4020 compliance
  • For fire protection services, water and neutral liquid applications
  • All fasteners of S.S.316 for corrosion resistance
  • Where applicable: for AS4020 compliance, maximum temp.=40℃

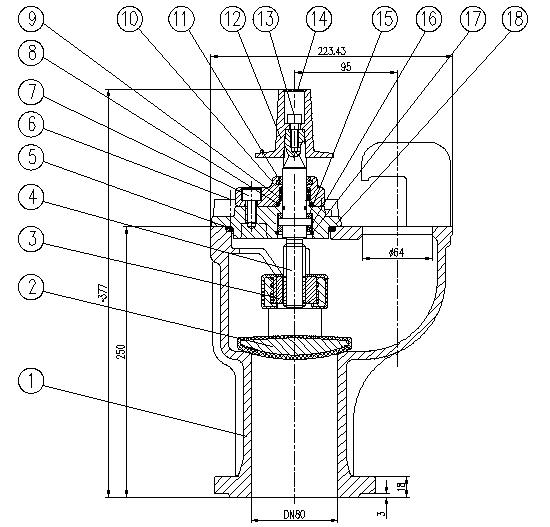

Components tree:

1 Body Ductile Iron BS500-7
2 Stopper WCB Steel EPDMEncaps.
3 Stem nut Brass C48600
4 Stem Stainless Steel 1Cr17Ni2(431)
5 O-ring Rubber NBR
6 Bonnet bolt Stainless Steel 316
7 Gland bolt Stainless Steel 316
8 O-ring Rubber NBR
9 Seal package Brass Rubber C48600 NBR
10 Gland Ductile Iron BS500-7
11 Dustproofcover Rubber EPDM
12 Stem cap Ductile Iron BS500-7
13 Cap bolt Stainless Steel 316
14 Cap insert Plastic PVC
15 Higher washer Brass C48600
16 Lower washer Brass C48600
17 Jump ring Stainless Steel 304
18 Bonnet Ductile Iron BS500-7

Reference nos. and dimensions:

BETTA ref. no. DN
mm 		H
mm 		H1
mm 		L
mm 		L1
mm 		L2
mm 		Theoretical
Weight/Kg
80BFH41X1-16Q-SA 80 377 250 223.43 95 64 14
